- High Compression Efficiency: River pebbles have smooth surfaces and high density. Roller crushers solve material slippage through forced double-roller squeeze and shear forces, delivering stable crushing efficiency.
- Superior Particle Shape & Adjustable Size: Produces highly cubical granules with minimal needle/flaky particles, with an adjustable roller gap to easily produce concrete sand matching different specs.
- Wear Resistance & Low Operating Costs: High-chromium wear-resistant alloy roller shells combined with hydraulic tramp release mechanisms lower wear costs per ton on hard river rock.
River stones (river pebbles) are abundantly available, but their smooth rounded surface, high hardness, and high quartz content make them notoriously difficult to process. Traditional impact crushers often struggle with material slippage, rapid wear, and excessive stone dust. The APEX (APEX) river stone sand making solution centers around high-pressure double roll crushers, combining primary jaw crushing, roll sand shaping, vibrating screening, and sand washing to convert tough river pebbles into premium construction aggregate.
River Pebble Sand Production Line
1. Key Challenges in Processing River Pebbles
As a prime raw material for manufactured sand, river stones present distinct physical processing hurdles:
- Difficult Material Engagement: Smooth, rounded pebble surfaces cause slipping inside high-speed impact crushers, lowering throughput and wasting kinetic energy.
- High Abrasion & Wear: Dense quartz and high silica content accelerate blow bar and impact plate wear, causing high replacement costs.
- Silt & Clay Content: Riverbed stones carry varying clay levels that must be separated to satisfy concrete aggregate cleanliness standards.
2. Complete River Stone Sand Equipment Configuration
• Primary Stage: Jaw Crusher
Handles large river boulders (e.g., >200mm), reducing raw rock to uniform intermediate feeds to protect downstream fine sand makers.
• Sand Making Stage: Double Roll Sand Maker
Utilizes counter-rotating dual rollers to grip smooth river stones continuously. Squeeze and shear pressure breaks material along internal grain boundaries without excessive impact attrition.
• Auxiliary Stage: Vibrating Screen & Wheel/Bucket Sand Washer
Classifies finished products into specific size grades while washing away surface silt and fine mud to ensure compliance with building sand specs.
3. Why Choose Roll Sand Makers for River Stones?
| Feature Aspect | APEX Double Roll Sand Maker | Traditional Impact Crusher (VSI) |
|---|---|---|
| Grip & Efficiency | Positive nip angle grips smooth pebble surfaces; no power wasted on rebounds. | Smooth stones bounce off rotors, causing energy loss and lower throughput. |
| Wear Part Cost | Heavy-duty alloy roller shells with long replacement cycles under high quartz load. | Rapid wear on blow bars and anvil plates; frequent maintenance downtime. |
| Gradation Control | Shims/hydraulic gap adjustment controls maximum output size and fineness modulus precisely. | Gradation shifts as rotor components wear down during operation. |
| Fines & Dust Control | Low over-crushing rate; generates far less useless stone powder. | High collision velocity creates excess micro-powder and mud burden. |

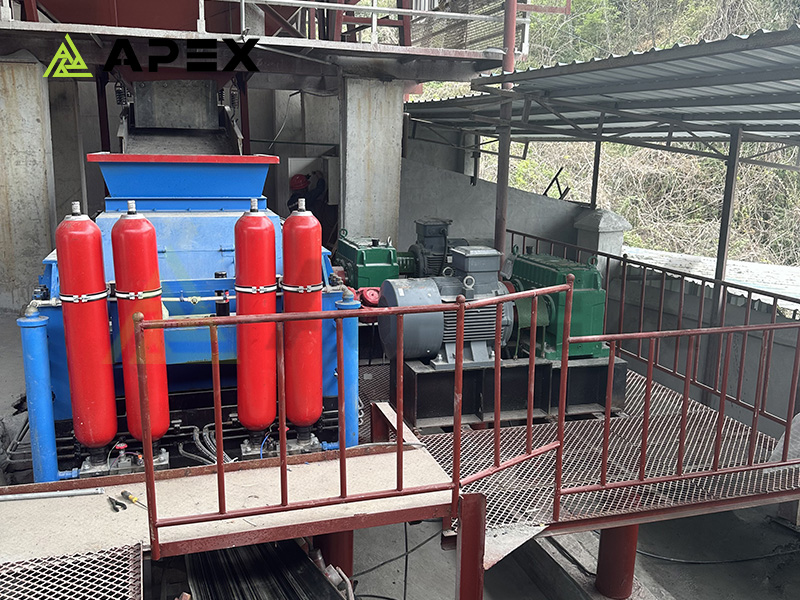

Apex Large Hydraulic Double-Roll Crusher
4. Why Choose APEX (APEX) River Stone Solutions?
- High-Wear Alloy Roller Shells: Specially formulated composite alloy rollers resist intense silica abrasion, dramatically lowering consumable costs on river pebble lines.
- Hydraulic Tramp Protection: Automatically opens the roller gap to clear uncrushable iron or hard objects, preventing shaft damage and ensuring continuous uptime.
- In-Stock Inventory: Standard double roll crusher models and spare parts are kept in stock for fast delivery and project turnarounds.
- Free Sample Material Testing: Customers can submit raw river pebble samples for factory trial runs to verify throughput, particle grading, and fine powder ratios before investing.
Summary: By leveraging high-pressure squeeze crushing, APEX double roll sand makers effectively eliminate material slippage, control wear, and yield high-grade cubical aggregate from hard river rocks. Contact APEX for free material sample testing and customized river pebble sand plant layouts.
