Key Engineering Highlights & Performance Takeaways:
- Solves 3 Major Sand-Making Pitfalls: Eliminates poor cubical shaping (needle/flaky particles), cuts excessive recirculating loads, and reduces high wear/operating expenses common with traditional VSI crushers.
- Natural Cleavage Compression: Double-roll inter-particle compression fractures pea gravel along natural cleavage planes, producing rounded cubical manufactured sand with controllable fineness modulus.
- Patent-Formulated Wear Shells: Apex proprietary alloy roller shells deliver average lifespans of 2+ years under continuous abrasive duty.
- Hydraulic Auto-Tramp Relief: Dynamic hydraulic relief automatically bypasses uncrushable tramp iron without manual intervention or downtime.
In modern fine-aggregate processing, pea gravel (typically 5–10 mm small aggregate, locally known as Guamishi) has emerged as a valuable raw material for manufactured sand. However, aggregate producers frequently face three main bottlenecks when crushing pea gravel: poor cubical particle shape with high needle/flaky ratios, excessive recirculating loads caused by out-of-spec oversize material, and high operating costs from rapid wear parts replacement. Designed specifically to overcome these challenges, the Apex Pea Gravel Double Roll Sand Maker leverages dual-roller compression to enhance sand quality, boost output consistency, and lower total lifecycle operating costs.
Pea Gravel (Guamishi) Double Roll Sand Maker
1. How Apex Double Roll Technology Solves Sand-Making Challenges
1. Quality Upgrade: Cubical Particle Shape & Standardized Grading
Traditional Vertical Shaft Impact (VSI) crushers often shatter small pea gravel violently, resulting in over-grinding, irregular needle-like flakes, and uncontrolled dust generation. The Apex roll crusher utilizes two independently driven rollers that apply controlled compression and shear forces. Pea gravel fractures naturally along internal grain boundaries, yielding fully cubical, rounded sand particles with low needle/flaky content, continuous gradation, and stable fineness modulus suitable for high-grade ready-mix concrete and dry-mix mortar.
2. Production Efficiency: Continuous High Output & Reduced Recirculation
The compact nip-zone design ensures smooth material flow without bridging or clogging, effectively processing both dry and moist feeds. An automatic hydraulic relief system dynamically opens the roller gap when uncrushable tramp metal enters, discharging the object and resetting automatically to maintain uninterrupted, full-load processing.
3. Cost Reduction: Patented Wear-Resistant Roller Shells
The primary wear component—the roller shell—is manufactured using Apex’s patented alloy formulation, engineered for high abrasion resistance and prolonged service life (averaging up to 2 years under typical duty). Coupled with a simplified drive system requiring minimal routine maintenance, total operational expenditure is substantially reduced.
Apex Double Roll Technology Solves Sand-Making
2. Performance Matrix: Double Roll Sand Maker vs. Traditional VSI Impact Crusher
| Operational Metric | Apex Pea Gravel Double Roll Sand Maker | Traditional VSI Impact Crusher |
|---|---|---|
| Crushing Principle | Dual-Roller Inter-Particle Squeezing & Shear | High-Speed Kinetic Rock-on-Rock Impact |
| Finished Sand Shape | Cubical & Rounded (Low Flakiness) | Irregular with High Needle/Flaky Fines |
| Over-Grinding & Dust Rate | Minimal (Controllable Powder Content) | High (Excess Ultrafine Dust Waste) |
| Moisture Adaptability | Handles Dry & Wet Material (Anti-Clogging) | Prone to Anvil Build-Up with Wet Feed |
| Wear Part Lifespan | Up to 2+ Years (Patented Alloy Shells) | Frequent Rotor/Impeller Replacement (Weeks/Months) |

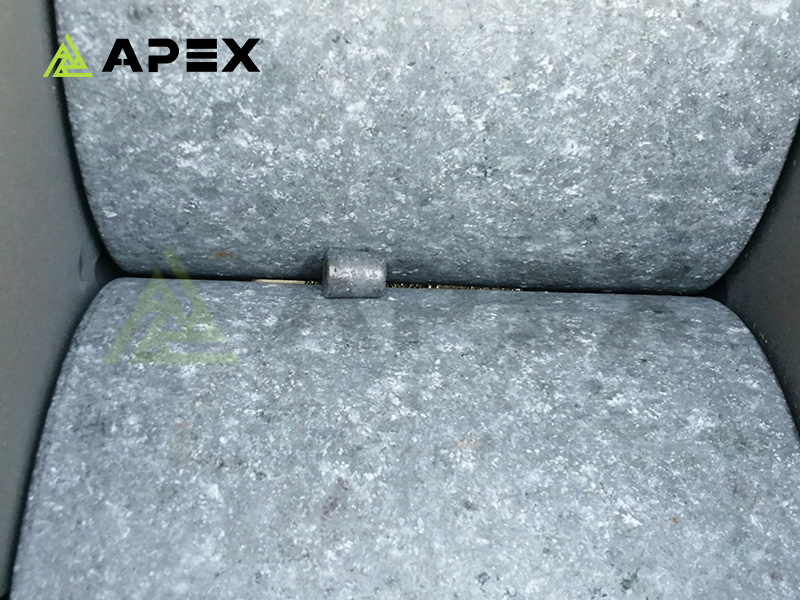

Wear-Resistant Roller Liners for Double-Roller Sand Making Machines
3. Direct Factory Supply & Material Testing Services
With over 20 years of crushing equipment manufacturing expertise, Apex Machinery provides complete product lines exported to the United States, Russia, South Africa, and other international markets.
- Free Raw Material Sample Testing: Producers can send onsite pea gravel samples to our factory testing facility to verify finished sand grading, yield rates, and particle shape firsthand.
- Tailored Equipment Configuration: Customized roller widths, gap clearance settings, and motor drive packages aligned with specific hourly tonnage (TPH) requirements and plant footprints 【Custom Parameters Available】.
- Turnkey Circuit Integration: Complete layout design incorporating feeders, vibrating screens, and belt conveyors for optimized closed-loop sand production.
Transform Your Pea Gravel into Premium High-Value Sand:
Contact Apex Heavy Industry today to schedule a free raw material sample trial run and receive a customized roll crusher equipment quote.
