In the mining, cement, metallurgy, and other industries, fine and ultra‑fine crushing operations have long faced issues such as high energy consumption, rapid wear, and low product yield. Traditional crushers dealing with high‑hardness materials suffer from frequent hammer replacement and excessive over‑crushing, which not only drive up operating costs but also limit production efficiency.
Huashengming Heavy Industry introduces its High‑Pressure Grinding Roll (HPGR) , based on the interparticle comminution principle. It uses high‑pressure compression as a replacement for traditional impact crushing, offering a new technical pathway for hard rock fine crushing and green sand making.
What is a High‑Pressure Grinding Roll?
The HPGR consists of two counter‑rotating rolls. Material is fed into a weigh hopper by conveying equipment, then enters the gap between the two rolls via a feeding device. The rolls draw the material into the nip, where it is subjected to high pressure (typically 50‑150 MPa). The material is compressed into a dense flake and discharged, then further de‑agglomerated or ground in the downstream process.
Unlike traditional impact crushers, the HPGR utilises the interparticle compression principle – material is crushed by mutual squeezing under high pressure, rather than by high‑speed rotating components striking the material. This comminution method is recognised as an advanced crushing and grinding technology.

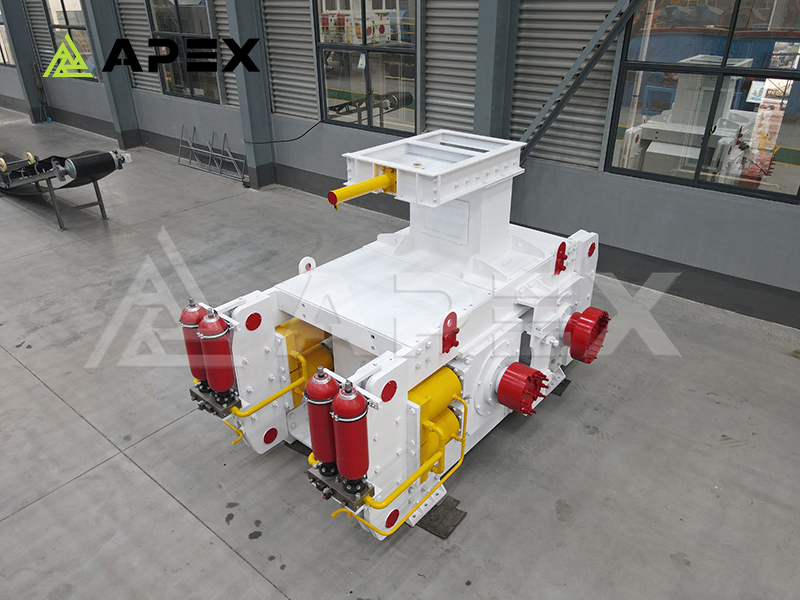

high pressure grinding roll
Core Advantages
Huashengming HPGR is engineered for demanding hard‑rock crushing applications. Its key advantages include:
Significant Energy Savings: When installed in a grinding system, the HPGR can increase grinding equipment productivity by 50%‑100%, and reduce total system power consumption by 25%‑50% compared to traditional grinding methods.
Extended Roll Surface Life: Using Huashengming’s proprietary casting technology and alloy steel roll surface with embedded tungsten carbide studs, the roll surface can achieve a service life of over 20,000 hours.
High Processing Capacity: The equipment can handle materials with moisture content up to 10%. It features a compact structure, small footprint, light weight, and is easy to operate and maintain.
Controlled Output: The fully hydraulic system makes roll gap adjustment more convenient and accurate while protecting the machine from overload. The HPGR can perform fine and ultra‑fine crushing with adjustable fineness modulus.
Wide Application: Suitable for fine crushing of hard and medium‑hard materials with compressive strength below 250MPa and moisture content below 10%.
Applicable Materials and Industries
Huashengming HPGR can process a variety of materials, including river pebbles, coke, coal, ceramic raw materials, quartz, limestone, shale, bricks, slag, clinker, feldspar, gypsum, salt, and chemical raw materials.
In terms of application, the HPGR serves a broad range of industries including mineral processing, power generation, chemicals, cement, refractories, abrasives, and building materials. It can be used for medium and fine crushing of ores, rocks, industrial waste slag, and other materials of medium to high hardness, whether single feed or blended.
High-Pressure Grinding Roll Production Site
In the building materials and power industries, the HPGR has demonstrated superior performance in producing pea‑gravel, coal, coal gangue, and other products. In metal mines, the HPGR is often combined with ball mills for iron, copper, gold, and other ore fine crushing, as well as oxidised pellet preparation.
Models and Customisation
Huashengming HPGR is available in small, medium, and large models. The G100×60 and G120×80 models offer capacities of approximately 60‑310 t/h and are considered compact units; the G140×100 and G180×150 models deliver 310‑1180 t/h and are classified as large‑scale equipment.
The equipment is offered in high‑end, standard, and economical configurations, allowing customers to select the appropriate specification according to their actual requirements.
Conclusion
As the mining and building materials industries move towards “energy saving, consumption reduction, green and intelligent” development, Huashengming HPGR offers a new option for hard rock fine crushing and green sand making with its innovative interparticle compression principle, extended roll surface life, and remarkable energy efficiency. With nearly three decades of experience, Huashengming continues to provide cost‑effective crushing solutions to customers worldwide, with equipment exported to many countries and regions. As a factory‑direct supplier, we offer all equipment at ex‑factory prices. Welcome to contact us or visit our plant for an inspection!
Huashengming Heavy Industry Machinery Factory – Committed to crushing equipment for nearly three decades.
