Executive Summary: Unlike impact and hammer crushers that rely on high-speed strikes, the double roller sand making machine utilizes compressive force and attrition shear generated by two independently driven counter-rotating rolls. This “compression over impact” approach minimizes over-crushing at the source, producing cubical, well-rounded aggregate with low flakiness and consistent grading.
I. Replacing Impact with Compression to Reduce Over-Crushing
Once raw material enters the crushing cavity, two counter-rotating wear-resistant rollers draw it smoothly into the crushing gap using surface friction. Subjected to compressive and shearing forces within the gap, the material fractures along its natural crystalline cleavage planes rather than splashing uncontrollably as it would under high-speed hammer impacts.
This “compression over impact” method naturally gives the finished sand a well-rounded shape with minimal elongated or flaky particles. Compared to impact crushing, the roller sand maker significantly reduces over-grinding during fine crushing, substantially increasing the usable product yield.

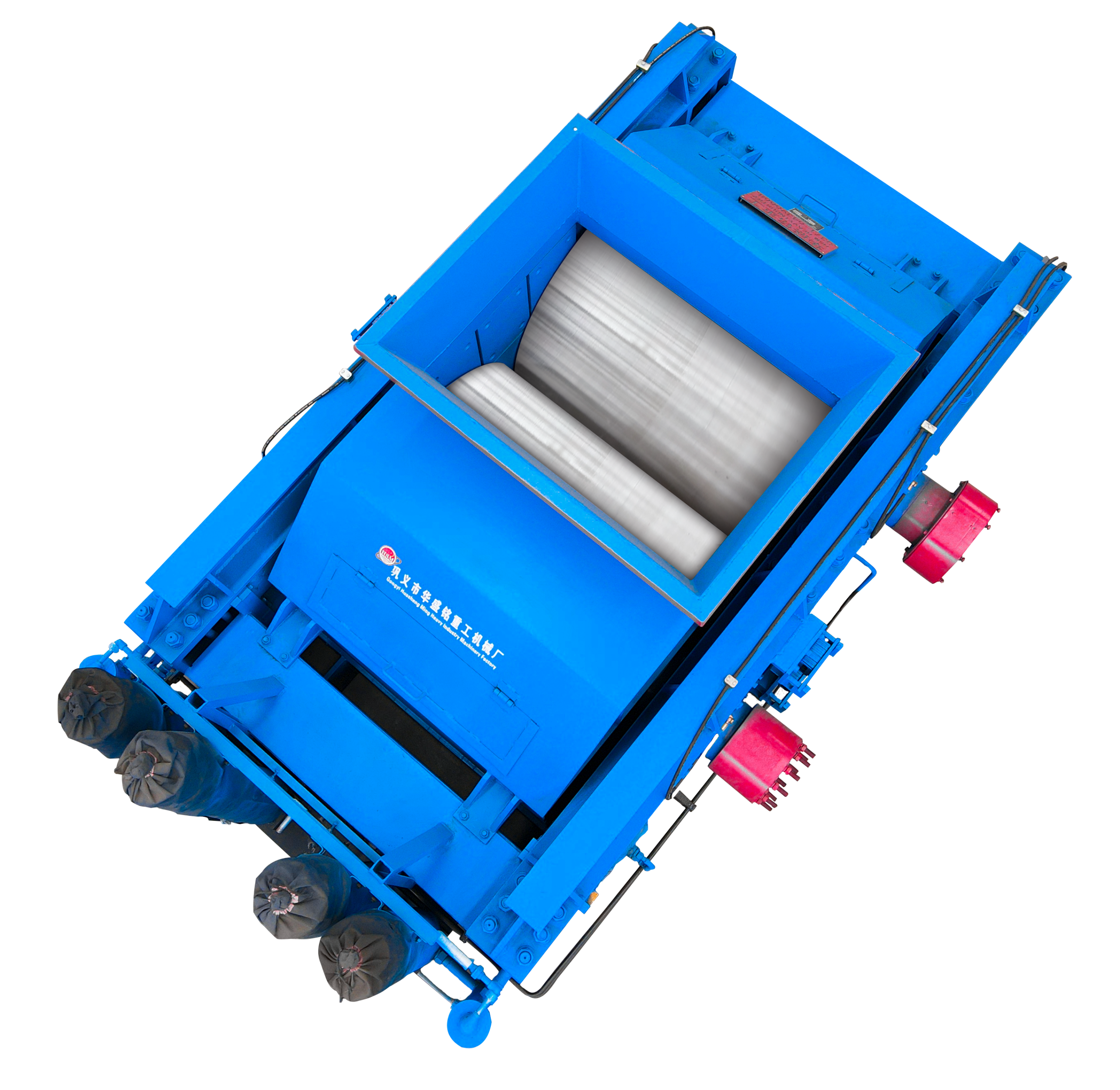

Roller Sand Making Machine
II. Roll Gap Discharge Control for Physical Screening & Stable Gradation
The output size of the roller sand making machine is determined by the gap between the two rolls, which acts as the precise threshold for particle size control:
- Qualified Particles: Aggregates smaller than the set gap discharge smoothly along the tangential direction of roller rotation.
- Oversized Particles: Material exceeding the gap is retained in the crushing cavity for further compression until reduced enough to pass through.
This discharge mechanism inherently acts as a “physical screening” process, ensuring reliable particle size control, stable aggregate gradation, and full compliance with construction sand specifications.
Roller Sand Making Machine Customer Site
III. Hydraulic Relief Protection for Continuous Operation
If uncrushable tramp material (such as tramp iron) enters the chamber, the integrated hydraulic system senses the pressure spike and triggers a retraction mechanism. The movable roll shifts back to enlarge the discharge opening, allowing the foreign object to pass, and immediately returns to its operational setting automatically.
This overload protection safeguards core mechanical components, minimizes unscheduled downtime, and maintains continuous production line operation.
Materials Suitable for the Roller Sand Making Machine
Crushing Mechanism Comparison
| Crusher Type | Primary Action | Aggregate & Performance Characteristics |
|---|---|---|
| APEX Double Roller Sand Maker | Interparticle Compression + Shear (“Compression Over Impact”) | Low dust and over-crushing; rounded particles with low flakiness; size precisely controlled by roll gap. |
| Impact / VSI Crusher | High-Speed Rotor Impact + Rebound Collision | High reduction ratio, but prone to excess fines/powder generation in fine sand stages; higher wear on hammers/blow bars. |
Conclusion: From reducing over-crushing through compression, to controlling gradation with precise roll gaps and protecting equipment via hydraulic relief, Huashengming (APEX) double roller sand makers replace impact with compression. This channels crushing energy into maximizing usable sand yield, offering a reliable technological path for production lines focused on product quality and operational stability.
