Hydraulic Roller Sand Maker – Hainan Case: Solving Gradation Issues

In manufactured sand production, particle gradation is a critical factor that directly determines concrete strength, workability, and final engineering quality. Mr. Guo, a sand producer in Hainan Province, operated a complete crushing line consisting of a jaw crusher for primary reduction, a cone crusher for secondary crushing, and an impact crusher for sand shaping. This configuration seemed comprehensive, but he encountered a persistent headache: the impact crusher generated large quantities of 5‑10mm aggregate chips (commonly known as pea‑gravel) as return material. These chips were too coarse to be sold as finished sand, yet too small to be re‑fed into the impact crusher efficiently. Over time, they accumulated in stockpiles, occupying valuable yard space and representing a loss of potential revenue. Mr. Guo faced an uncomfortable choice – either sell these chips at a steep discount to low‑end applications, or invest in additional equipment to unlock their value.

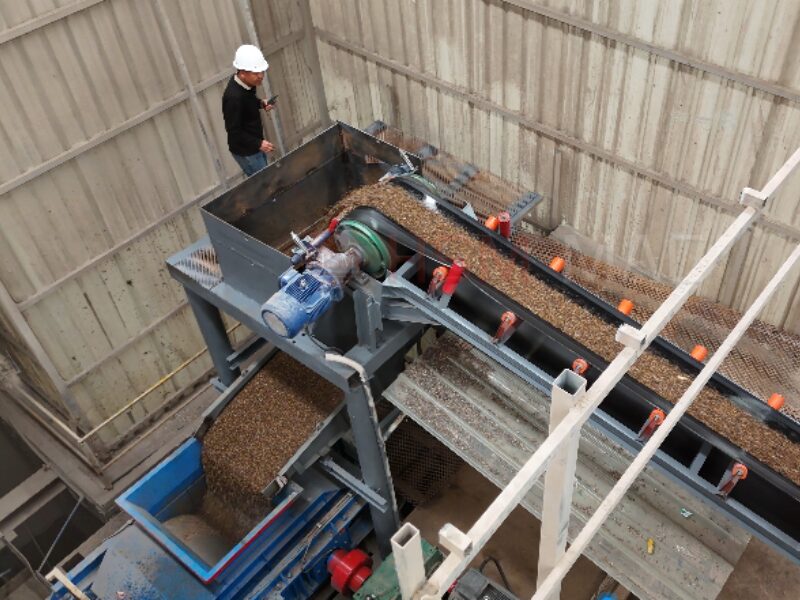

Hydraulic Roller Sand Maker Production Site

After evaluating solutions from several suppliers, Mr. Guo selected the Huashengming 2PGY1000×1000 full‑hydraulic roller sand maker. This model is equipped with two Siemens motors and two high‑precision gearboxes, delivering a stable capacity of 60‑70 tonnes per hour. Its primary mission was to crush the pea‑gravel chips down to below 3mm, transforming them into manufactured sand that could be blended with the main output. With this addition, the production line evolved into a more complete closed‑loop system: jaw crusher for primary, cone crusher for secondary, impact crusher for shaping, and finally the roller sand maker for fine re‑crushing. This configuration effectively converted the previously hard‑to‑utilise pea‑gravel into qualified sand, significantly improving overall material utilisation and reducing waste stockpile costs.

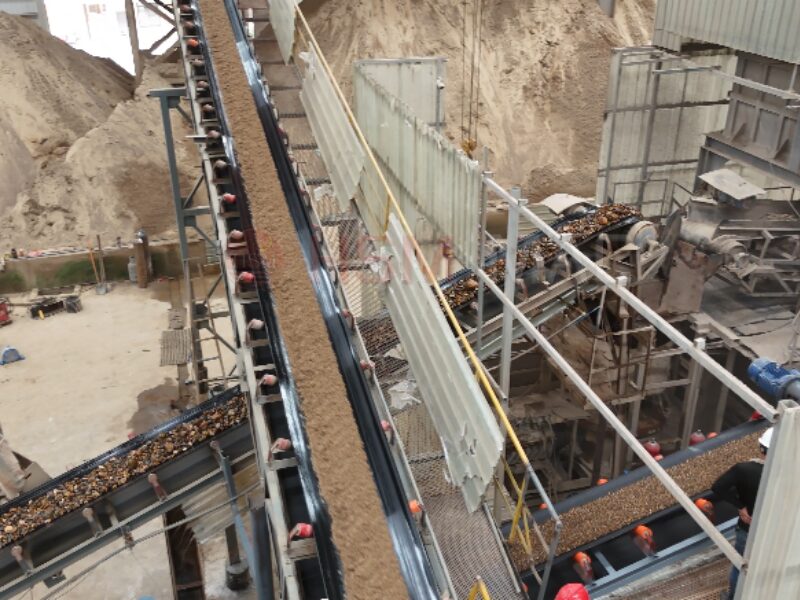

Sand Making Production Site

The 2PGY1000×1000 offers several distinct advantages that made it a suitable choice for Mr. Guo’s operation. First, its full hydraulic system allows precise, stepless adjustment of the roll gap. Operators can fine‑tune the output size in real time without stopping production, ensuring consistent sub‑3mm product quality even as roll shells experience gradual wear. Second, the roll shells are cast from a proprietary high‑chromium manganese steel alloy that provides good resistance to abrasive wear. In actual operation, the shell life extends significantly longer than conventional wear parts, reducing downtime for replacement. Third, the compression‑shearing crushing mechanism generates fewer fines than impact‑based machines. This means the finished sand particles are more angular, well‑shaped, and have a lower powder content – all of which contribute to better performance in concrete mixes.

The results after commissioning were measurable. The gradation gap that previously existed in the 3‑5mm range was effectively filled, creating a more continuous and well‑balanced particle size distribution. The fines content (particles below 0.075mm) decreased compared to the impact crusher’s output, which improved the sand’s fineness modulus. The finished sand consistently met national standards for construction aggregates, and Mr. Guo was able to clear the low‑value pea‑gravel stockpile. He noted that the roller sand maker not only alleviated his gradation problem but also increased the overall value of his production line by converting previously hard‑to‑process return material into a saleable product. He praised the machine’s stable operation, low maintenance requirements, and the responsive technical support provided by Huashengming’s team.

This case demonstrates how the right equipment can help producers address real‑world production challenges. With three decades of experience, Huashengming continues to deliver factory‑direct roller sand makers for pea‑gravel, quartz, limestone, river pebbles, and many other materials. For producers seeking to optimise gradation, reduce fines, and improve material utilisation, the hydraulic roller sand maker offers a proven and reliable solution.
