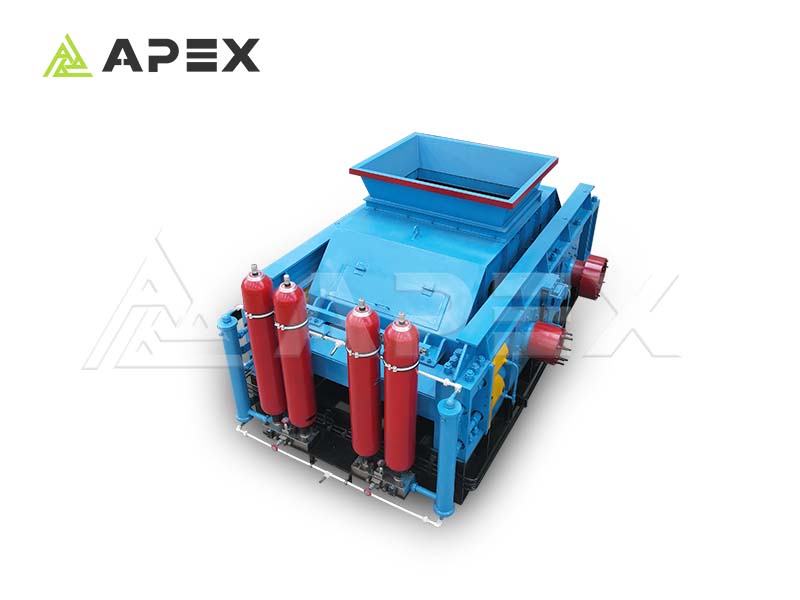

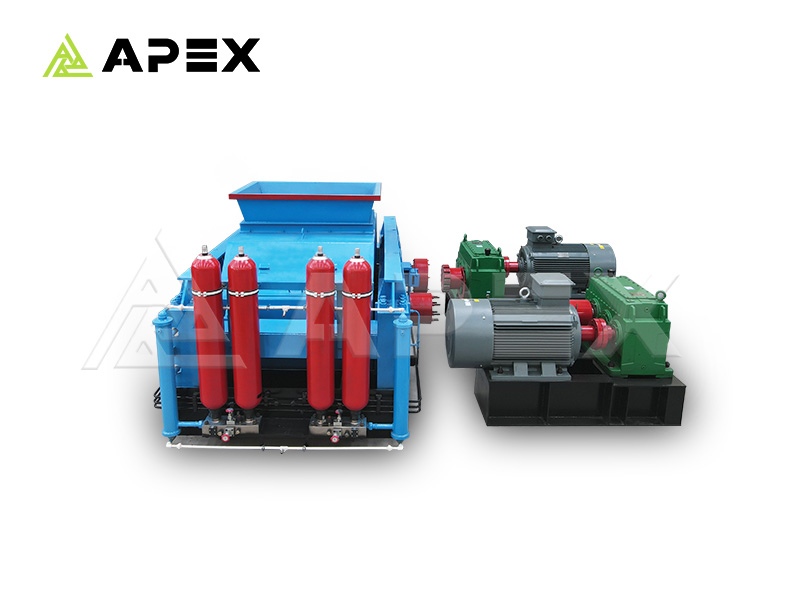

Hydraulic Double Roller Crusher
River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on
- Feed size:25-100mm
- Productive capacity:5-450t/h
Application:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Hydraulic Double Roller Crusher
1. Product Overview
The Large Hydraulic Double Roller Crusher is a high-efficiency, energy-saving intelligent crushing device designed for large-scale operations in mining, metallurgy, building materials and other fields. Integrating advanced electromechanical-hydraulic integration technology, it adopts a high-performance hydraulic control system for medium and fine crushing of hard materials. With intelligent hydraulic protection, adjustable discharge size, durable wear-resistant roller skin and compact structure, it ensures stable, efficient and environmentally friendly operation, providing cost-effective solutions for aggregate production, ore processing and building waste recycling.
Hydraulic Double Roller Crusher
2. Application Fields
With its wide adaptability and stable performance, our Large Hydraulic Double Roller Crusher is widely used in various industries that require large-scale crushing operations, including but not limited to:
1. Mining & Mineral Processing Industry
Crushing of iron ore, copper ore, gold ore, coal, limestone, dolomite and other ores, and fine crushing operations before beneficiation, which can improve the efficiency of subsequent ball mill operations.
Crushing of iron ore, copper ore, gold ore, coal, limestone, dolomite and other ores, and fine crushing operations before beneficiation, which can improve the efficiency of subsequent ball mill operations.
2. Construction Aggregate Production
Applied to infrastructure projects such as highways, railways, bridges, dams and commercial buildings, producing high-quality manufactured sand and fine crushed stone aggregates, meeting the gradation requirements of concrete batching.
Applied to infrastructure projects such as highways, railways, bridges, dams and commercial buildings, producing high-quality manufactured sand and fine crushed stone aggregates, meeting the gradation requirements of concrete batching.
3. Building Materials & Cement Production
Used for raw material crushing and clinker fine crushing in cement plants, coal gangue, shale and clay crushing in brick factories, gypsum raw material processing in gypsum board factories.
Used for raw material crushing and clinker fine crushing in cement plants, coal gangue, shale and clay crushing in brick factories, gypsum raw material processing in gypsum board factories.
4. Energy & Metallurgy Industry
Suitable for raw coal and coke crushing in power plants and coking plants, fine crushing of steel slag, furnace slag and quicklime in metallurgical plants, meeting continuous production needs.
Suitable for raw coal and coke crushing in power plants and coking plants, fine crushing of steel slag, furnace slag and quicklime in metallurgical plants, meeting continuous production needs.
5. Solid Waste Recycling & Environmental Protection
Applied to construction waste recycling, crushing concrete blocks, brick fragments and mortar blocks; industrial solid waste recycling, realizing resource regeneration of solid waste.
Applied to construction waste recycling, crushing concrete blocks, brick fragments and mortar blocks; industrial solid waste recycling, realizing resource regeneration of solid waste.
6. Chemical & Ceramic Raw Material Processing
Used for fine crushing of chemical and ceramic raw materials such as phosphate ore, quartz, feldspar and refractory materials, ensuring uniform raw material particle size.
Used for fine crushing of chemical and ceramic raw materials such as phosphate ore, quartz, feldspar and refractory materials, ensuring uniform raw material particle size.
3. Core Advantages
1. Intelligent Hydraulic Protection System
Automatically retreats and resets when encountering foreign objects, avoiding machine damage and ensuring continuous operation.
2. High Crushing Efficiency & Energy Saving
Saves 20%-30% energy and increases output by 30%-40% compared with traditional crushers.
3. Durable & Wear-Resistant
Roller skin is made of high-chromium manganese steel alloy, 3-5 times longer service life, adapts to harsh working environments.
4. Adjustable Discharge Size & Excellent Product Shape
Hydraulic control adjusts roller gap, producing cubic finished products with low needle-flake content.
5. Simple Operation & Very less Maintenance
With compact structure and intelligent control panel, modular roller skin for easy replacement, low maintenance costs.
6. Environmentally Friendly & Compliance
Fully enclosed structure + dust removal, low noise, meets environmental standards.
4. Working Principle
Designed for high-efficiency material processing, our Large Hydraulic Double Roller Crusher operates on a simple yet highly effective static pressure extrusion principle. This mechanism ensures superior crushing results with minimal energy consumption.
Core Operation Process:
- Feeding: Materials are uniformly fed from the feeder into the crushing chamber, located between the two horizontally mounted counter-rotating rollers.
- Engagement: Friction and gravity draw the material into the narrowing gap between the rollers.
- Crushing: As the rollers rotate, the material is subjected to immense, continuous pressure. When this pressure exceeds the material’s compressive strength, it breaks along its natural fractures and weak points.
- Discharge: The crushed material falls through the adjustable gap at the bottom of the unit, completing the crushing cycle.
Key Operational Features:
- Controllable Size: The final product size is precisely determined by the hydraulic adjustment of the roller gap, allowing for quick, on-the-fly modifications without interrupting production.
- Laminar Flow Crushing: This process produces a high percentage of cubic-shaped particles with reduced fines, ideal for high-grade construction applications.
Technical parameter
| Model | Roll Diameter (mm) | Roll Width (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) |
|---|---|---|---|---|---|
| 2PGY750×500 | φ750 | 500 | ≤40 | 20-30 | 2×(22-30) |
| 2PGY800×600 | φ800 | 600 | ≤40 | 30-40 | 2×(30-37) |
| 2PGY800×800 | φ800 | 800 | ≤40 | 40-50 | 2×(37-45) |
| 2PGY1000×800 | φ1000 | 800 | ≤40 | 50-80 | 2×(45-55) |
| 2PGY1000×1000 | φ1000 | 1000 | ≤60 | 80-100 | 2×(75-90) |
| 2PGY1200×1000 | φ1200 | 1000 | ≤80 | 100-120 | 2×(75-132) |
| 2PGY1500×1200 | φ1500 | 1200 | ≤120 | 150-200 | 2×(132-160) |
| 2PGY1800×1000 | φ1800 | 1000 | ≤100 | 250-300 | 2×(250-315) |
| 2PGY2000×1200 | φ2000 | 1200 | ≤120 | 300-400 | 2×(315-355) |
