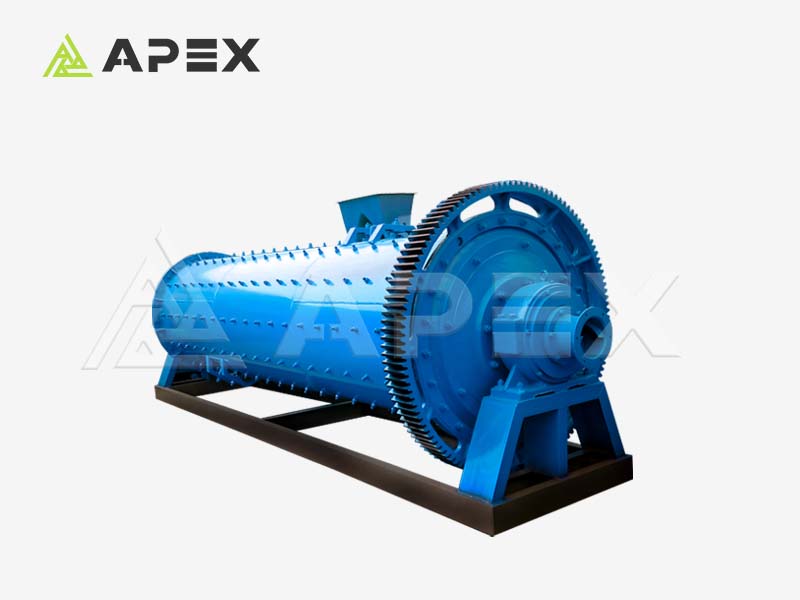

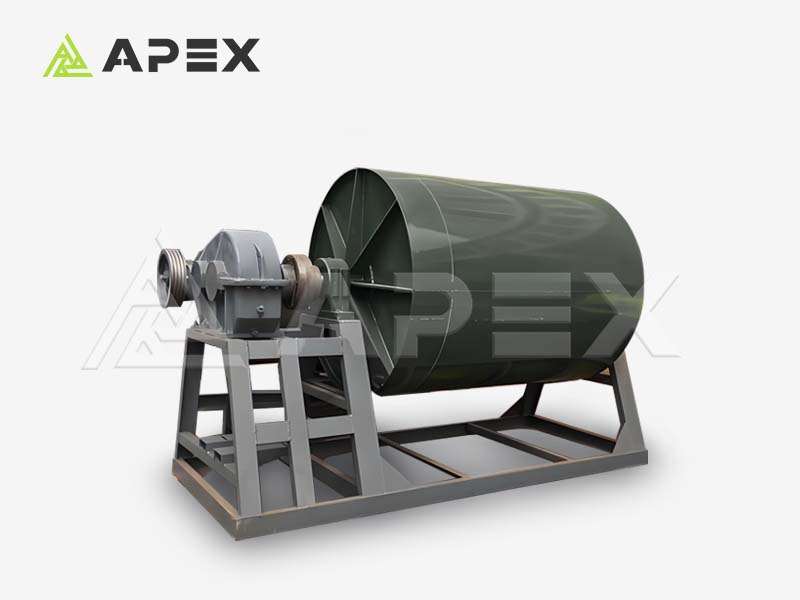

Ball Mill

Professional High-Performance Grinding Solution for Global Industries

Product Overview

Built with advanced structural optimization and precision manufacturing, the HSM Ball Mill is a high-efficiency industrial grinding solution designed for versatility. It integrates stable operation with broad adaptability, addressing diverse grinding needs across mining, cement, chemicals, and new energy sectors. Empower your production line with consistent quality and enhanced operational efficiency.

Ball Mill

Wide Applications

Mining
Gold, Copper, Iron Ore

Construction
Cement & Clinker

Chemicals
Pigments & Catalysts

New Energy
Lithium Battery Materials

Working Principle

The rotating cylinder drives grinding media (steel or ceramic balls) to move. Under centrifugal force and gravity, the media are lifted and fall in a parabolic trajectory, crushing materials through impact, friction, and extrusion. Product fineness is fully controllable by adjusting rotation speed and grinding time.

Structure

Cylinder: High-strength steel for stable rotation.
Wear-Resistant Liner: Extends service life & reduces maintenance.
Grinding Media: Premium steel or ceramic balls.
Drive System: Continuous, stable power output.

Core Advantages

✓ High Efficiency: Optimized contact between media and material.

✓ Flexible Grinding: Supports both Dry and Wet methods.

✓ Durable Design: High-quality liners for harsh environments.

✓ Easy Operation: Intelligent control reducing labor costs.

Technical Parameter

Model	Cylinder Size (mm)	Speed (r/min)	Balls Load (t)	Capacity (t/h)	Power (kw)
MQ0912	900 × 1200	39.2	1	0.5 – 1.2	15
MQ1224	1200 × 2400	31.3	4.1	2.4 – 6.15	30
MQ1545	1500 × 4500	30.9	12	3.5 – 12	130
MQ1845	1830 × 4500	25.4	20	5 – 33	180
MQ2445	2400 × 4500	22.5	35.2	30 – 55	380
MQ3245	3200 × 4500	18.5	63.8	61 – 113	800
MQ4560	4500 × 6000	15.3	158	150 – 296	2300

* Note: Additional models are available upon request. Capacity varies based on material hardness and fineness requirements.
