Wheel Bucket Sand Washer

Efficient Cleaning, Dewatering & Fine Sand Recovery Solution

Product Overview

The Wheel Bucket Sand Washing Machine (also known as a wheel-type sand washer) is high-efficiency equipment designed for cleaning and grading both artificial and natural sand. It effectively removes soil, dust, and impurities while destroying the water vapor layer on the sand surface to improve overall quality.

As an indispensable core auxiliary equipment in sand production lines, it realizes the efficient use of resources and ensures high-quality sand for concrete mixing stations and infrastructure projects.

Application Scope

Materials: River sand, granite, basalt, artificial sand.
Industries: Concrete stations, Mining, Hydropower.
Recycling: Construction waste recycled sand cleaning.
Infrastructure: Road and bridge construction sand.

Product Features

Compact & Efficient

Small floor space and easy installation allow for rapid production setup and single-person operation.

Eco-Friendly Design

Excellent sealing performance with no dust or noise pollution, fully meeting international environmental standards.

Highly Adaptable

Customizable models and adjustable parameters to meet specific output and cleaning degree requirements.

Working Principle

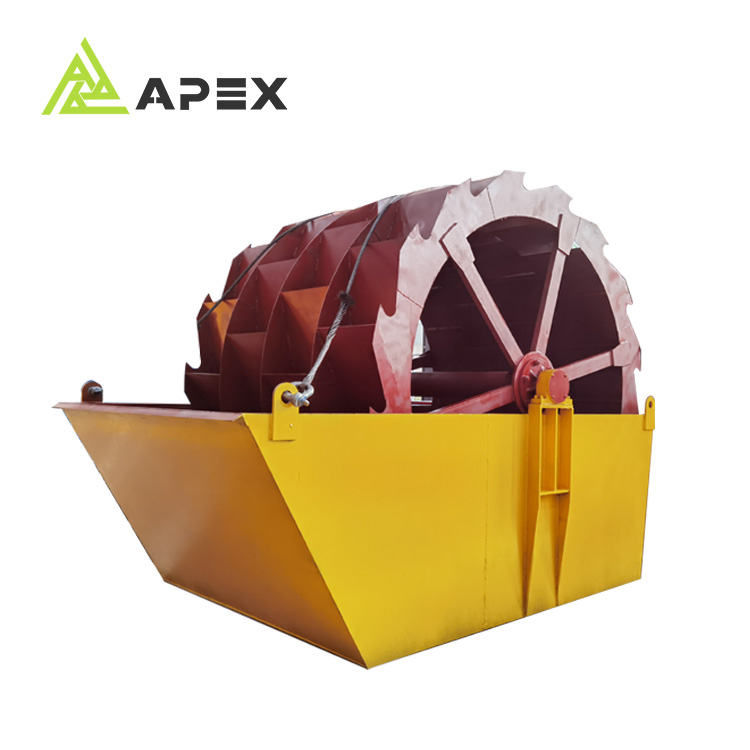

Wheel Bucket Sand Washer

Driven by a motor, the wheel bucket rotates slowly in the tank. Sand is soaked and rolled within the bucket to separate impurities. A high-pressure flushing system removes stubborn clay. The cleaned sand is then lifted by the blades, completing natural dehydration before discharge, while sewage is sent to a sedimentation tank for fine sand recovery.

Technical Parameter

Model Impeller Diameter (mm) Capacity (t/h) Feed Size (mm) Weight (t) Power (kw)
XSD2210 Φ2200 15 – 35 ≤10 2.0 5.5
XSD2610 Φ2600 20 – 50 ≤10 2.68 5.5
XSD2814 Φ2800 30 – 65 ≤10 3.0 7.5
XSD3016 Φ3000 50 – 80 ≤10 3.4 11
XSD3216 Φ3200 80 – 120 ≤10 3.9 11
XSD3616 Φ3600 120 – 180 ≤10 4.5 15

Core Components

Wheel Bucket System
High manganese steel blades with replaceable wear-resistant liners for harsh conditions.
Transmission Device
Fully sealed hard tooth surface reducer ensuring stable operation and long service life.
Fine Sand Recovery
Integrated sedimentation tank and cyclone pump to recover fine sand and improve ROI.
