Trommel Screen (Rotary Drum)

Professional, High-Efficiency Screening Solution for Mining & Recycling

Product Overview

The HSM Trommel Screen (also known as a rotary screen or drum screen) is a robust mechanical screening machine designed for precision separation of bulk materials. By utilizing a rotating, perforated cylindrical drum, it efficiently classifies materials by particle size.

Whether you are scalping oversized rocks in a gold mine, sorting municipal waste (MSW), or grading construction aggregates, our trommel screens deliver high throughput with minimal maintenance.

Main Applications

• Gold & Coal Ore desliming
• Sand & Gravel grading
• Municipal Waste (MSW) sorting
• Construction & Demolition sorting
• Compost & Bulk granular separation

Key Features & Advantages

High Screening Efficiency

The gentle tumbling action ensures thorough contact with the screen surface for maximum throughput.

Anti-Clogging Design

Material movement naturally dislodges blockages. Optional self-cleaning systems available for wet/sticky materials.

Wash-Integrated Option

Can be equipped with high-pressure water sprays for simultaneous washing and screening of clay-heavy ores.

Working Principle

Material is fed into the inclined, rotating drum. As the drum turns, the material tumbles and spirals downward. Undersized particles pass through the screen apertures into a collection hopper, while oversized materials are discharged from the lower end. Internal lifters enhance the tumbling action to break up agglomerates.

Trommel Screen

Trommel Screen

Technical Parameter

Model Drum Size (m) Drum Angle Mesh Size (mm) Capacity (m³/h) Power (kw)
GTS820 Φ0.8 × 2 6° 1 – 50 8 – 30 3
GTS1040 Φ1 × 4 6° 1 – 50 15 – 80 4
GTS1240 Φ1.2 × 4 6° 1 – 50 18 – 120 5.5
GTS1250 Φ1.2 × 5 6° 1 – 50 20 – 140 5.5
GTS1540 Φ1.5 × 4 6° 1 – 50 22 – 150 7.5
GTS1550 Φ1.5 × 5 6° 1 – 50 25 – 180 11

Why Choose Our Equipment?

Custom Engineering
Tailored design to match your specific material type, feed size, and site conditions.
High-Quality Components
Premium wear parts (Manganese/PU) for extended service life and reduced downtime.
Integrated Solutions
Complete turnkey plants including feeding, conveying, and washing systems.
Global Service
Expert installation, commissioning, and 24/7 after-sales support worldwide.

Need a High-Efficiency Screening Solution?

Consult our technical team for the best screen configuration and a factory-direct quote.

Consult Our Engineers Now

ONLINE MESSAGE

Let's talk, Send us a message today!

    Your submission was successful.

    Submission failed. Please try again.

    Product Category

    Hot Products

    Four Roller Crusher
    Four-Roll Crusher: Technical FAQ
     Double Tooth Roller Crusher
    Double Tooth Roller Crusher FAQ

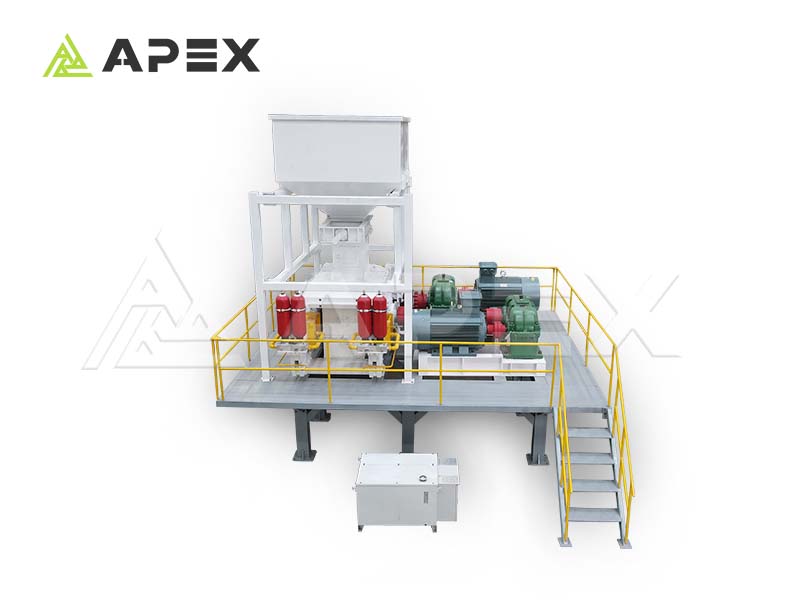

    HPGR Technical Maintenance FAQ
     Mobile Double Roller Crusher
    Mobile Double Roller Crusher: Expert FAQ
     Mobile Diesel Jaw Crusher
    Mobile Diesel Crusher FAQ

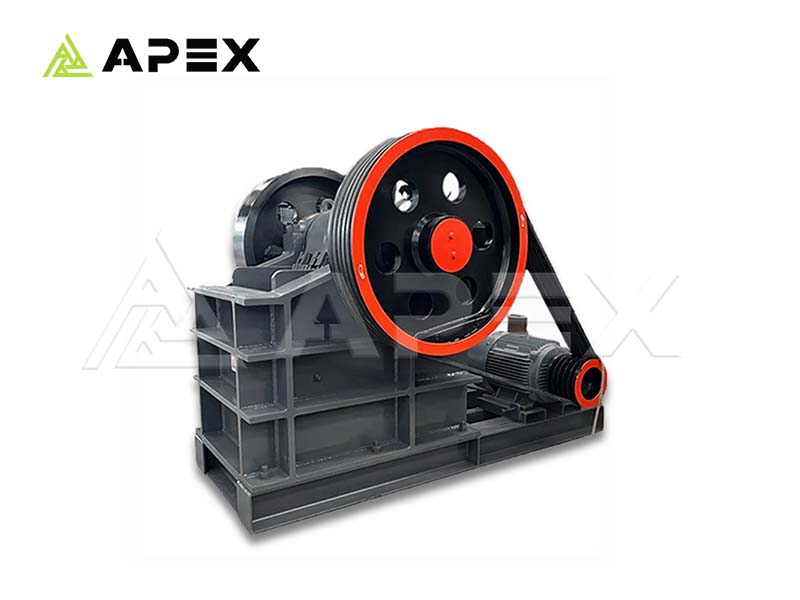

     Jaw Crusher
