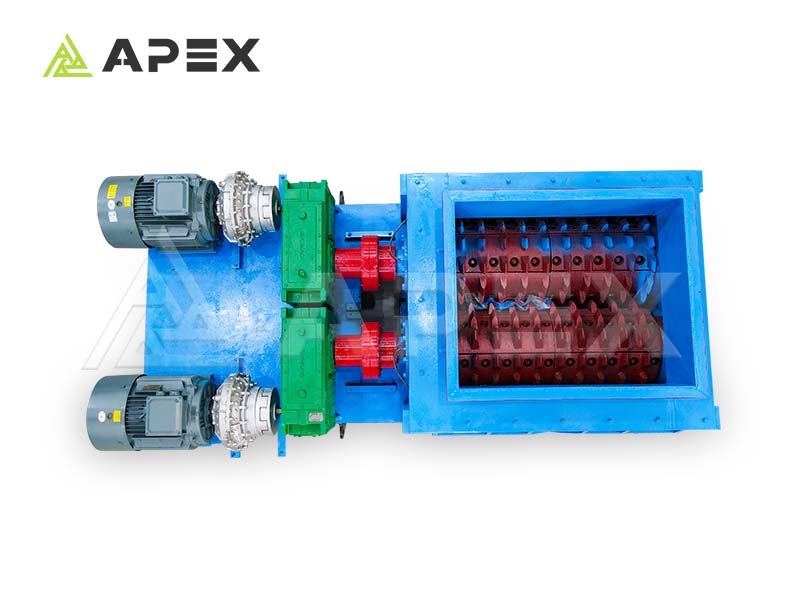

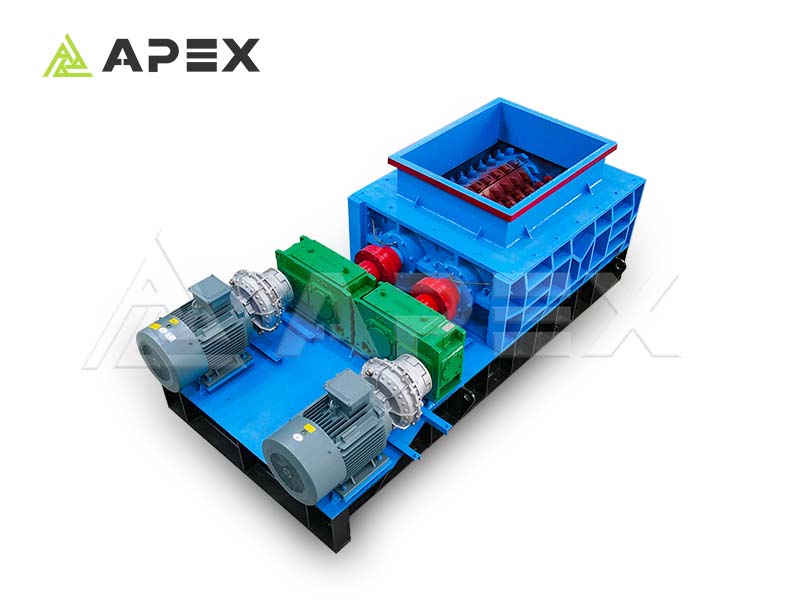

Sizing Tooth Roller Crusher
clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.
- Feed size:≤300-1500mm
- Productive capacity:100-5000t/h
Application:cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.
Sizing Tooth Roller Crusher
Product Introduction
The Sizing Tooth Roller Crusher is a heavy-duty, low-speed, high-torque crushing equipment integrating crushing and classification. It adopts shear-stretch crushing principle, with low over-crushing rate, stable operation and high efficiency, specially designed for large-scale material crushing in industrial fields.
Sizing Tooth Roller Crusher
Applications
The Sizing Tooth Roller Crusher is widely used in coal mines, metal mines, building materials, chemical industry, power plants, etc. It is suitable for crushing raw coal, gangue, granite, basalt, limestone and other materials with compressive strength up to 300MPa, applicable to fixed, semi-mobile and mobile crushing stations.
Core Advantages
Integrated Crushing & Classification
No pre-screening equipment needed, saving significant space and initial investment costs.
Precise Discharge Control
Hydraulic stepless gap adjustment ensures uniform granularity with an over-crushing rate ≤8%.
Energy-saving & Eco-friendly
Low rotation speed (50-80rpm) leads to 15-30% energy saving, reduced noise, and minimal dust emission.
Durable & Reliable
Wear-resistant tooth sleeves can be replaced individually. Features double overload protection and ≥95% operation rate.
Strong Adaptability
Superior performance when handling dry, wet, and sticky materials. Designed for easy on-site maintenance.
Working Principle
When materials enter the gap between two parallel horizontal tooth rolls, qualified granularity materials are directly discharged through the gap between teeth and comb plates. Large materials exceeding the set size are crushed along natural cracks by the shear and stretch force of the oppositely rotating teeth, then discharged immediately to avoid repeated grinding.
Technical parameter
| Series | Model | Max. Feeding (mm) | Output Size (mm) | Capacity (t/h) | Power (kw) |
|---|---|---|---|---|---|
| 500 | 500-600 | ≤300 | 20-150 | 100-240 | 18.5×2 |
| 500 | 500-1200 | ≤300 | 20-150 | 200-500 | 37×2 |
| 625 | 500-2000 | ≤300 | 20-150 | 300-700 | 45×2 |
| 625 | 625-1500 | ≤500 | 20-240 | 250-800 | 55×2 |
| 850 | 850-1200 | ≤750 | 30-270 | 400-800 | 75-90×2 |
| 850 | 850-2500 | ≤750 | 30-270 | 800-2200 | 132-160×2 |
| 1000 | 1000-2000 | ≤1000 | 50-300 | 800-1200 | 160-220×2 |
| 1300 | 1300-2000 | ≤1300 | 80-350 | 1200-2500 | 185-200×2 |
| 1500 | 1500-3000 | ≤1500 | 120-500 | 3000-5000 | 315-400×2 |
* Only representative models are shown. For the full model list, please contact us.
Heavy-Duty Crushing & Precise Classification
Boost your production rate with HSM’s Sizing Tooth Roller Crusher. Designed for high efficiency and minimal maintenance.
