Mining operations generate large quantities of stripped waste rock and tailings. Long-term stockpiling not only occupies vast land areas but also creates environmental pressures such as dust emissions and soil erosion. Driven by green mining policies, more mining companies are choosing to process waste rock into qualified crushed stone and manufactured sand for use as road base materials and construction aggregates, achieving on-site solid waste utilization and resource reuse.
Real Challenges in Mine Waste Rock Crushing
Mine waste rock varies widely in hardness and often contains soil, rock impurities, and occasional tramp iron. Conventional impact crushers struggle with this material—high-speed impact causes over-grinding, rapid hammer wear, and frequent jamming from tramp iron. Sticky clay further reduces throughput, while poor dust sealing makes it hard to meet environmental standards.
four roll crusher
Hua Sheng Ming Four-Roll Crusher – Technical Solution
Addressing the multiple challenges of mine waste rock processing, Hua Sheng Ming offers the four-roll crusher, applying a two-stage crushing and multi-roll compression approach to waste rock processing applications.
The equipment features a two-stage roll arrangement: the upper pair of rolls handles primary crushing, and the lower pair performs secondary crushing—two stages in one pass. Material passes through both roll pairs in sequence, producing uniform discharge size with low over-grinding. The finished product has a high proportion of cubical particles with regular shape, directly meeting construction aggregate specifications.
Roll surface types can be flexibly selected: toothed rolls provide strong material grip for coarse crushing, while smooth rolls deliver precise particle size control for fine crushing. Based on waste rock hardness and moisture content, various combinations are available—toothed+toothed, toothed+smooth, or smooth+smooth—allowing one unit to adapt to multiple waste rock types.
Four-roll crusher crushing material comparison
The roll shell is manufactured using Hua Sheng Ming’s proprietary formulation and process, with enhanced wear resistance for hard rock waste rock, extending wear parts service life and reducing downtime from frequent parts replacement. The integrated hydraulic buffer system allows the rolls to automatically retract when tramp iron enters the crushing chamber, preventing equipment damage and accommodating the variable composition of waste rock feed. The roll gap can be adjusted hydraulically in real time, enabling flexible switching between different discharge sizes—one unit can produce both crushed stone aggregate and manufactured sand to meet multiple product specifications. The modular structural design allows for convenient roll shell removal and maintenance, reducing on-site repair time and easing spare parts inventory pressure, enabling quick maintenance even in remote mining areas.
Four-roll crusher advantages
Process Configuration and Application Scenarios
The equipment can be flexibly integrated into stationary crushing lines or mounted on mobile chassis to form mobile crushing units, supporting on-site waste rock disposal without material transport, significantly reducing material haulage burden. For metal mine stripped waste rock, the unit also performs mineral liberation pre-treatment, providing ideal feed size for downstream screening and sorting operations.
The optimized sealed dust-proof structure effectively contains dust emissions during processing, aligning with green mining environmental standards. The equipment can be paired with vibrating feeders and screens to form complete waste rock processing lines, handling high-volume feed and achieving continuous stable production.

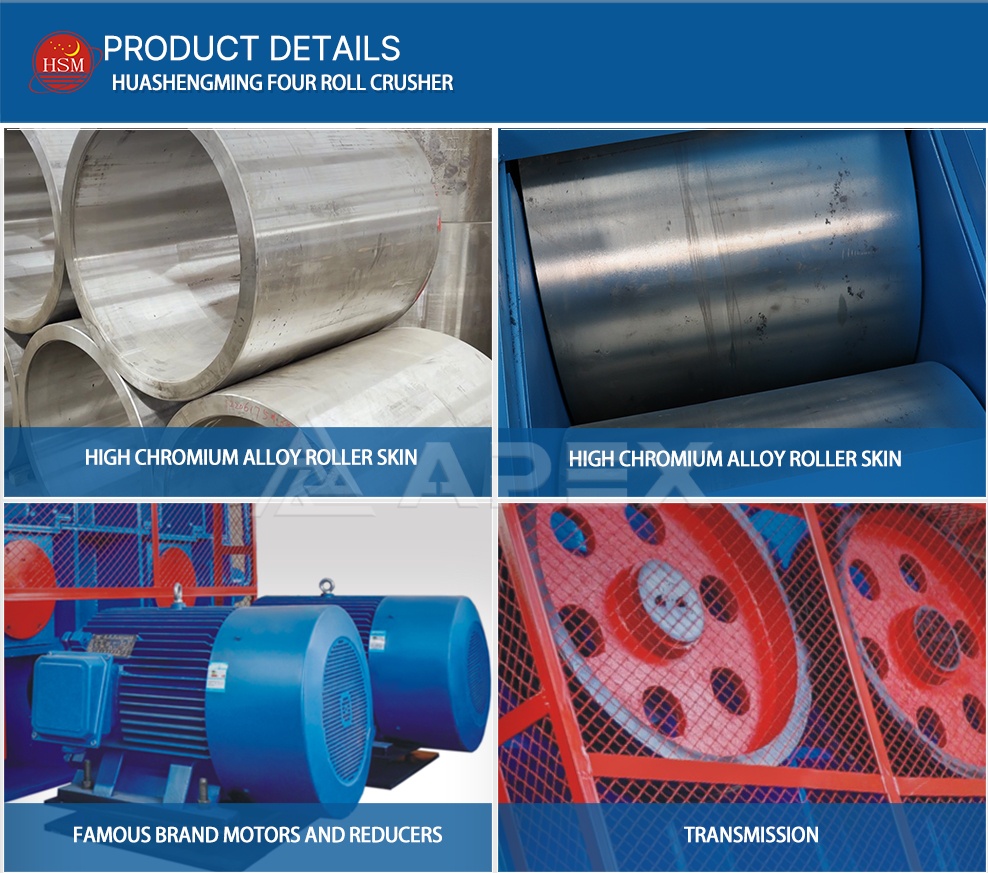

Four-roll crusher structure
Application Track Record
This equipment series has been deployed in multiple mine waste rock and tunnel spoil reuse projects, helping mining companies process accumulated waste rock stockpiles and convert waste material into usable sand and aggregate products, balancing environmental compliance with production efficiency.
Hua Sheng Ming provides equipment selection and process configuration recommendations based on feed hardness, processing scale, and product size requirements, offering reliable equipment support for mine solid waste utilization projects.
