Toothed + Smooth Roll Crusher for Coal Gangue Sulfur Processing in Guizhou

Coal gangue is a solid waste generated during coal mining and washing, containing a certain amount of pyrite. Through crushing, separation, and other processes, sulfur concentrate can be extracted from coal gangue. A customer in Xingren, Guizhou, adopted the Hua Sheng Ming 1210 toothed roll crusher + 1210 hydraulic roll crusher combination to process coal gangue to below 3mm, providing ideal feed conditions for downstream separation processes.

Project Overview

A customer in Xingren, Guizhou, is engaged in sulfur concentrate extraction from coal gangue. The coal gangue has complex composition, high moisture content, and difficult mineral liberation, with strict requirements for discharge accuracy and production stability.

After comparing multiple equipment options, the customer selected the Hua Sheng Ming toothed roll crusher + hydraulic roll crusher combination. This project represents the customer’s seventh and eighth equipment orders, demonstrating strong recognition of Hua Sheng Ming equipment performance and service. The solution has been proven effective in coal gangue comprehensive utilization projects in Guizhou, Shanxi, Shaanxi, and other regions.

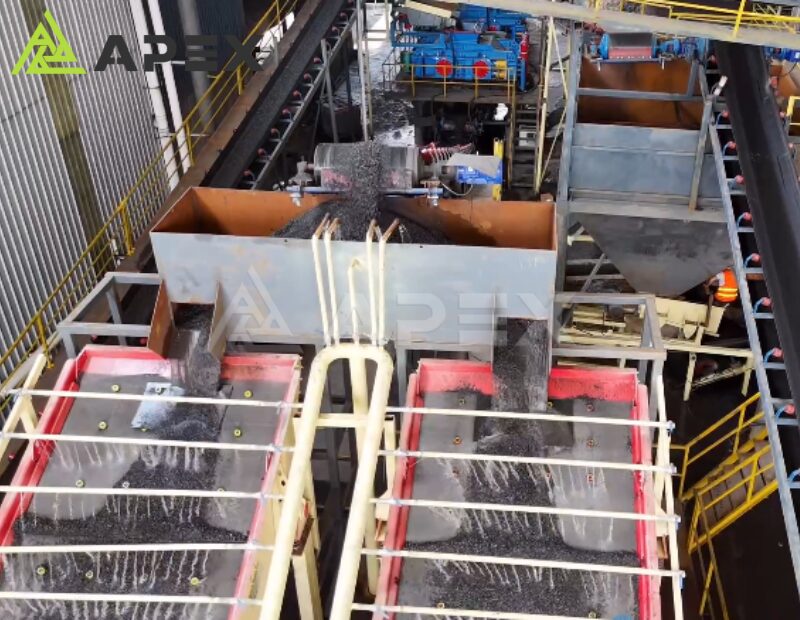

coal gangue sulfur concentrate crusher

Equipment Configuration and Process Route

The equipment adopts a “1210 toothed roll for primary crushing + 1210 hydraulic roll for fine crushing” combination, specifically designed for complex coal gangue to sulfur concentrate processing conditions.

Primary Crushing – Toothed Roll Crusher

The toothed roll crusher operates on the low-speed shearing and compression principle. Low-speed rotating wear-resistant toothed rolls grip and split the material through combined shearing and compression action, handling coal gangue with fluctuating hardness. The two rolls operate at differential speeds in opposite directions, creating better shearing and tensile crushing effects. The screenless design controls discharge size through the roll gap, allowing stable passage of both wet and dry materials. The differential speed self-cleaning design prevents material buildup on roll surfaces, ensuring continuous operation.

Fine Crushing – Hydraulic Roll Crusher

The hydraulic roll crusher operates on the inter-particle compression principle. Two high-strength alloy rolls provide stable pressure through the hydraulic system, performing layer-by-layer compression on the coal gangue, with discharge size consistently controlled below 3mm. The hydraulic gap adjustment system supports online roll gap adjustment, allowing discharge size to be adjusted according to downstream flotation or magnetic separation requirements.

Operating Parameters and Performance

Material: Coal gangue (sulfur concentrate raw material)
Feed Size: ≤100mm
Discharge Size: ≤3mm

Coal gangue crusher site

The two-stage progressive crushing processes 100mm coal gangue to below 3mm in a single pass. The fine crushing size below 3mm effectively improves the liberation degree of pyrite from gangue, providing ideal feed conditions for downstream flotation or magnetic separation, and is the critical prerequisite for improving sulfur concentrate grade and recovery rate.

Key Advantages

Two-Stage Combination – Good Liberation Effect

The toothed roll efficiently breaks down large material without clogging or jamming; the hydraulic roll performs fine crushing with precise particle size control, effectively addressing issues of excessive fines, uneven particle size, and incomplete liberation. The equipment is equipped with hydraulic automatic retraction protection, automatically retracting when encountering unbreakable material and resetting after discharge, ensuring safe and reliable operation.

Handles Both Dry and Wet Materials – Stable Operation

Both the toothed roll crusher (screenless design) and the hydraulic roll crusher (screenless bottom design) offer high tolerance to moisture content, allowing stable continuous operation with both dry and wet materials.

Precise and Adjustable Discharge Size

The hydraulic gap adjustment system supports flexible roll gap adjustment, allowing discharge size to be adjusted according to downstream flotation or magnetic separation requirements to meet different production conditions.

Customer Feedback

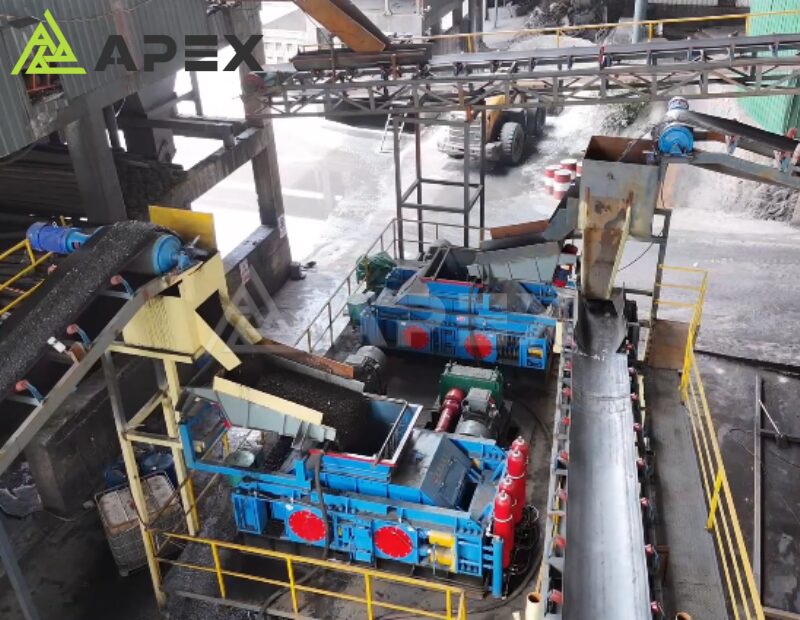

Coal gangue crusher in production

The customer reported that previous equipment caused frequent clogging, excessive fines, and unsatisfactory liberation. After switching to the Hua Sheng Ming toothed roll + hydraulic roll combination, 100mm feed material is processed directly, with discharge consistently controlled below 3mm. The equipment delivers uniform particle size, stable operation, and sufficient output, making long-term production reliable and hassle-free.

The Hua Sheng Ming toothed roll + hydraulic roll combination crusher is specifically designed for coal gangue and sulfur concentrate processing challenges. The screenless toothed roll design addresses high-moisture clogging issues, while the hydraulic roll compression crushing achieves gentle liberation and precise particle size control, providing a proven crushing solution for coal gangue sulfur extraction projects.
