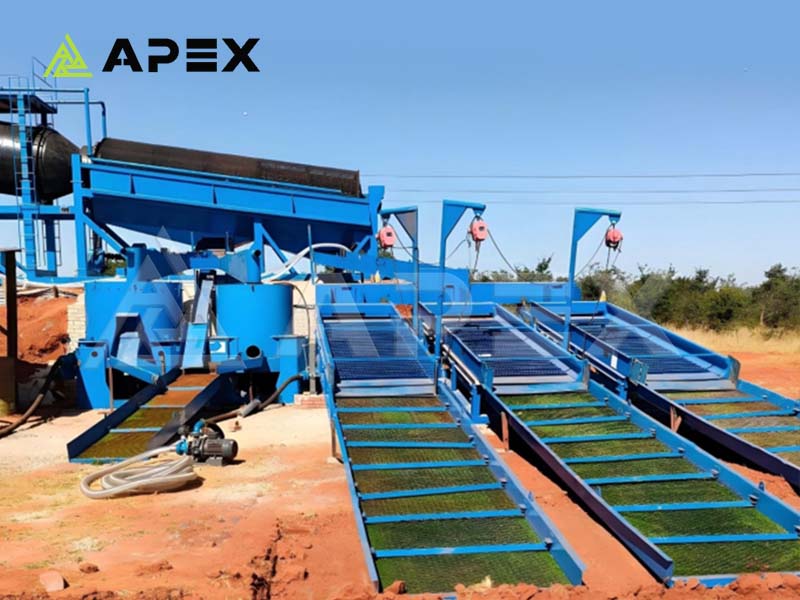

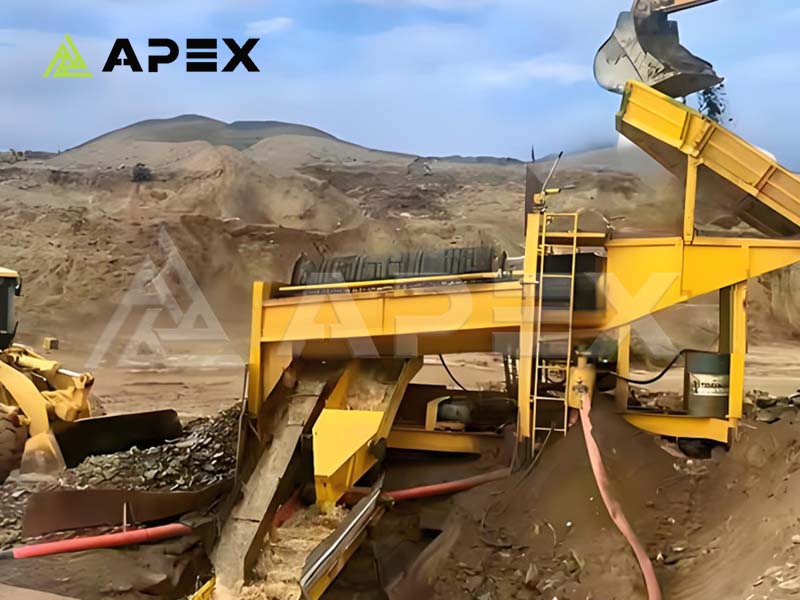

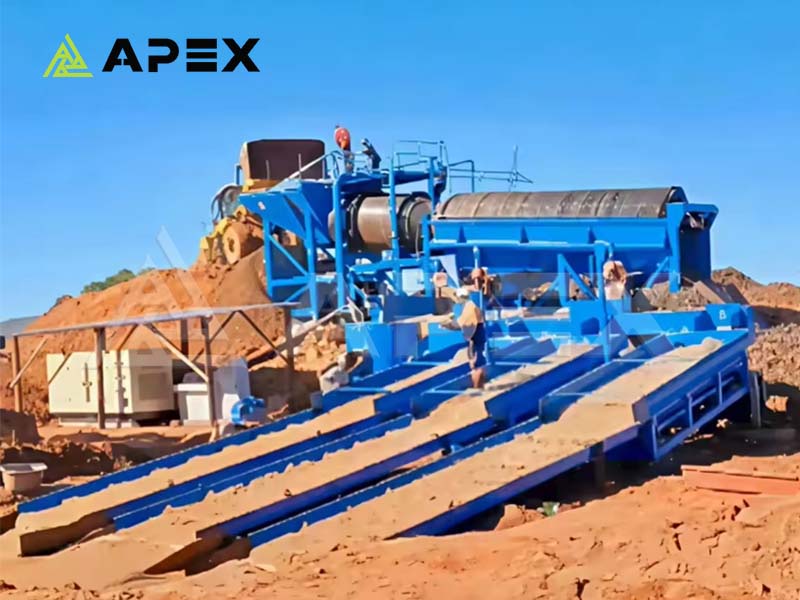

Gold Trommel Screen

Maximum Recovery & Efficiency for Alluvial Gold Mining Operations

Introduction

Our Heavy-Duty Gold Washing Trommel is engineered for maximum efficiency and reliability in alluvial gold mining. Combining advanced washing, screening, and classification technologies, this integrated system delivers superior gold recovery rates while minimizing operational costs.

Whether you are operating in riverbeds, placer deposits, or remote mining sites, our trommel screen is designed to outperform, ensuring an overall recovery rate of 90% to 97%.

Quick Highlights:

High Recovery: 90% – 97%
Capacity: Up to 200 TPH
Durability: Manganese/PU wear-liners
Flexibility: Fixed, Skid, or Mobile models

Working Principle

01. Feeding

Raw ore is fed into the rotating trommel drum via a heavy-duty feeder hopper for continuous processing.

02. Washing

High-pressure water jets and tumbling action thoroughly dislodge clay, mud, and unwanted fines from the gold sands.

03. Concentration

Classified fine material is directed to sluice boxes or centrifugal concentrators for final high-precision gold extraction.

Equipment Advantages

• Superior Washing: Integrated scrubbing ensures removal of sticky clay, even in high-mud conditions.

• Heavy-Duty Build: Built with wear-resistant manganese/PU mesh for 24/7 harsh environment operation.

• Energy Saving: Low-RPM chain drive reduces operational costs by up to 40%.

• Total Flexibility: Customizable drum sizes (8-50mm mesh) with mobile trailer options.

Technical Parameter

Model	Drum Dimension (mm)	Capacity (t/h)	Power (kw)	Weight (kg)
GTS0519	500 × 1900	5-10	1.5	550
GTS1020	1000 × 2000	10-30	4.0	1500
GTS1225	1200 × 2500	30-50	5.5	2200
GTS1548	1500 × 4800	80-150	11.0	6800
GTS1848	2000 × 4800	150-200	15.0	7200
