Coal Gangue Double Tooth Roll Crusher – Working Principle & Benefits

In coal gangue processing, crushing is often the bottleneck. Common issues like clogging, rapid wear, and excessive fines come from mismatched equipment. Based on field experience, HSM offers the coal gangue double tooth roll crusher as a complete solution. This article covers its working principle and key benefits.

Working Principle

1. The HSM coal gangue double tooth roll crusher consists of two heavy-duty toothed rolls that rotate toward each other at relatively low speeds. Material enters the V-shaped crushing chamber from above. The two rolls bite the material and apply shearing, tensile, and extrusion forces – rather than high-speed impact.

2. Because the tooth plates are specially designed with a self-cleaning profile, the material cracks along its natural fissures instead of being violently smashed into powder. Once the particles are crushed to a size smaller than the preset roll gap, they fall through by gravity. There is no screen plate below the rolls, so no retention zone is created. This prevents clogging and ensures that already qualified particles exit immediately without being over-crushed.

3. The roll gap can be adjusted hydraulically, allowing operators to change the output size quickly and precisely. When uncrushable material such as tramp iron or extra-hard rock enters the chamber, an overload protection system (fluid coupling or electronic sensor) automatically reverses or stops the rolls, expels the foreign object, and then resumes normal operation.

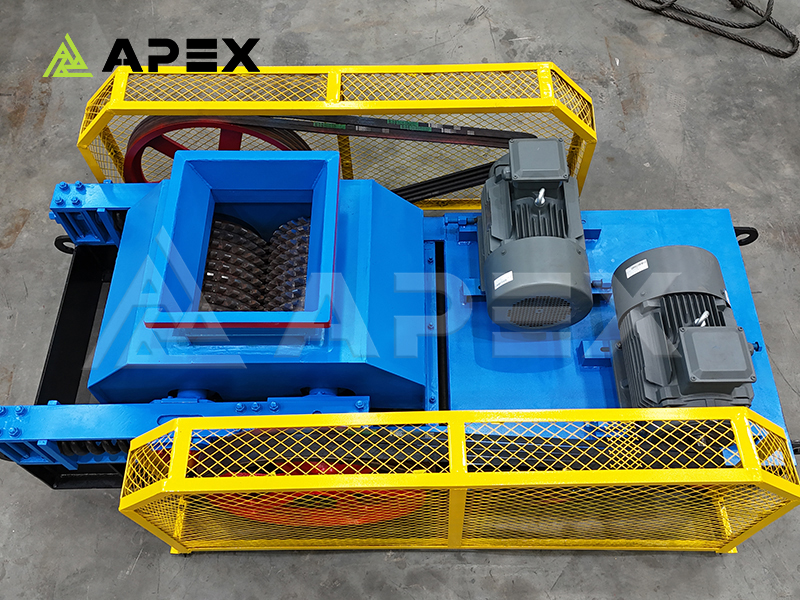

coal gangue double tooth roll crusher

Key Benefits

1. Significantly reduced over-crushing
The low-speed shearing action produces mainly blocky or cubical particles, with much fewer fines compared to impact crushers. This makes the product more suitable for downstream applications such as sand making, brick production, power plant fuel, or mineral extraction.

2. Reliable operation with wet and sticky materials
The gravity discharge design, combined with self-cleaning tooth profiles, eliminates clogging even when processing coal gangue with high moisture or high clay content. No frequent shutdowns for cleaning are required.

3. Long service life and low maintenance cost
Tooth plates are made of high-chromium alloy or hardfacing wear layer, offering excellent wear resistance against quartz and sandstone inclusions. The split structure allows individual tooth plate replacement, so only worn parts need to be changed – not the entire roll. This reduces downtime and spare parts costs.

Coal gangue double tooth roll crusher at crushing site

4. Energy efficiency
Low-speed, high-torque operation consumes significantly less energy per ton than high-speed impact crushers, because energy is used for shearing rather than producing unnecessary fines and dust.

5. Built-in overload protection
The crusher protects itself against tramp iron and other uncrushable materials, preventing damage to rolls, bearings, and gearboxes. This minimizes unexpected breakdowns and extends equipment life.

6. Flexibility for different applications
By simply adjusting the hydraulic roll gap or changing the tooth plate type (sharp teeth, round teeth, etc.), the same machine can produce various output sizes to meet the requirements of sand making, brick making, fuel preparation, or mineral beneficiation.

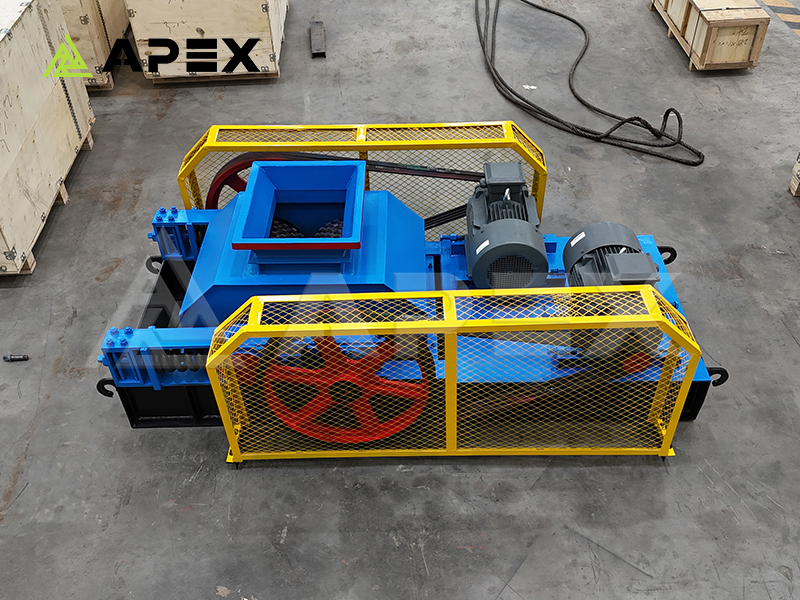

Spring coal gangue double tooth roll crusher

Service & Support

With over thirty years of experience in manufacturing crushing equipment, HSM can conduct free tests using your coal gangue samples and develop a solution after confirming the crushing performance. We promise to respond quickly to customer needs. Whether you encounter operational questions or equipment problems, we can efficiently diagnose and resolve them. Common spare parts are kept in sufficient stock with fast shipping, ensuring that your equipment does not experience long downtime waiting for spare parts.

Select Models & Parameters

HSM – Targeted solutions for coal gangue crushing challenges.
