clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

Feed size:25-40mm
Productive capacity:20-900t/h

Application:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

Get Quote

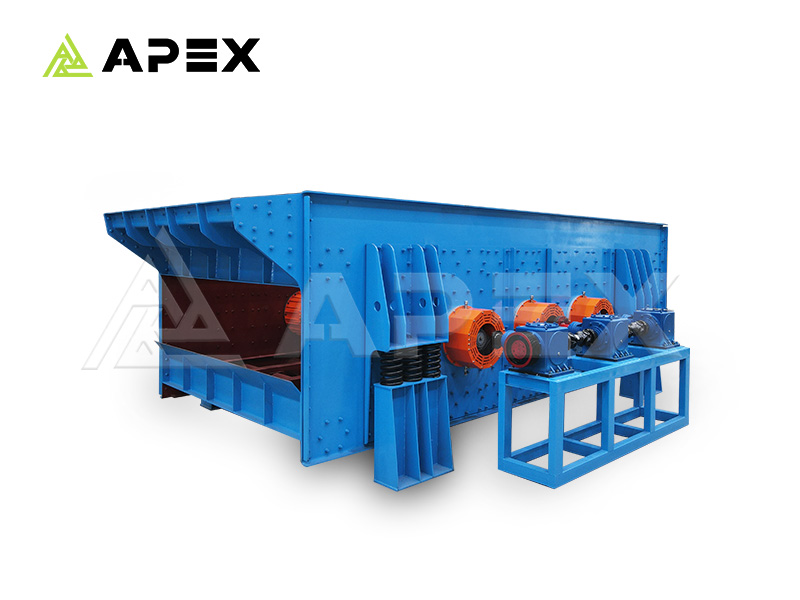

Circular Vibrating Screen

High-Performance Material Classification for Mining & Quarrying

Product Introduction

The YK Series Circular Vibrating Screen is a high-performance screening machine designed for precise material classification. With advanced vibration technology and heavy-duty construction, it delivers stable operation and a screening efficiency of over 95%, perfectly meeting the demands of harsh mining and industrial environments.

Main Applications

• Mining: Gold, Iron, Copper, Limestone.

• Aggregate: Crushed stone, River sand.

• Coal: Raw coal & Coal gangue sorting.

• Recycling: Construction & MSW waste.

Key Features

95% Efficiency

Eccentric block exciters generate strong vibration for optimal material stratification and high-speed sieving.

Heavy-Duty Build

Anti-corrosion steel frame and wear-resistant mesh designed for 24/7 continuous operation.

Easy Maintenance

Quick-access frame allows mesh replacement in 30 mins; centralized lubrication reduces downtime.

Working Principle

Driven by a vibration motor, eccentric blocks generate centrifugal force that produces circular vibration. Materials move forward in a parabolic trajectory on the inclined screen. Fine particles pass through the mesh, while coarse particles are discharged at the end, ensuring efficient separation by size.

Circular Vibrating Screen

Technical Parameter

Model	Decks	Area (m²)	Capacity (t/h)	Power (kw)	Screen Size (mm)
YK1236	1-4	4.3	20 – 150	5.5 – 11	1180 × 3550
YK1548	1-4	7.2	30 – 275	5.5 – 18.5	1480 × 4750
YK1848	1-4	8.6	32 – 350	15 – 22	1780 × 5950
YK2160	1-4	12.6	66 – 720	18.5 – 30	2080 × 5950
YK2460	1-4	14.4	75 – 810	18.5 – 37	2380 × 5950
YK3060	1-4	18.0	200 – 900	30 – 45	2980 × 5950

Why Choose Our Vibrating Screen?

Factory Direct Supply
Competitive pricing and fast delivery with no middleman.

Certified Quality
Fully CE, ISO 9001, and GOST certified for global projects.

Global After-Sales
24/7 technical support and on-site maintenance in 30+ countries.

Maximize Your Screening Efficiency Today!

Contact our technical experts for a customized solution and a fast factory quote.
